2400mm
two piece joint stitcher, two piece box stitching machine,twin head joint stitcher ,two head box stitching machine,double head stitching machine,Double Head Box Stitching Machine
1. Adopt Import Double Servo Control System
2. Applied single, double and irregular corrugated carton stitching
3. Available for single, double and strengthen nail
4. Suitable for 3,5,and 7-Layer carton boxes
5. Operating sizes are adjusted by computer, running errors showed on the screen
6. Automatic counter ejector and bundle sheaves of cartons to make working efficiently
7. Stitching Pitch from 30-120mm adjusted by computer

Specification	YXD-040
	2400mm

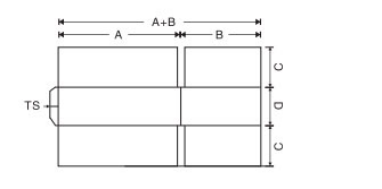

Max.Sheet size(A+B)×2	4800mm	188.9inch
Min.Sheet size(A+B)×2	1060mm	41.7inch
Max.Box Length (A)	1650mm	85.6inch
Min. Box Length (A)	350mm	13.7inch
Max. Box Width (B)	900mm	47.2inch
Min. Box Width (B)	150mm	5.9inch
Min. Sheet Height (C+D+C)	400mm	15.7inch
Max. Sheet Height (C+D+C)	3000mm	118inch
Stitching Pitch	30-120mm
Max. Stopper Measurement	600mm(C)
Max. TS Width	45mm(E)
Min. of the First stitch Pitch	25mm without cover
No. of stitching	1-99 Stitches or more
Machine Speed	500 Stitches/Minute
Cardboard thickness	3-8mm(9-11mm need customized)
Input Voltage	380V three phase
Power Required	18HP
Stitching wire(width*Thickness)	(0.68-0.75)*(1.8-2.0)mm
Stitching wire tray	5KG
Stitching Type	Single, Double, Tie Stitching:"/ / / / /" 、 "// // //" 、 "// / / / //"
Machine Length	6000mm
Machine Width		4200mm
Machine Weight		5800KG
Twin head semi auto stitching machine Features:
Adopt Import Double Servo Control System
Electronically controlled for the size, explanation of the fault showed on the screen
Suitable for single, double pieces operation and irregular corrugated carton stitching.
Electronically controlled for the size, explanation of the fault showed on the screen
Single, double and tie stitching are available, all the nails can be rounded off in one time
Automatic counter ejector, when up to the qty set up on the touch screen, will automatically bundle sheaves of cartons
Suit for large and small carton, high efficency
Stitching Pitch can be adjustable to set on the touch screen,and it's adjustable from 30mm-120mm
Suit for 3-Layer,5-Layer large boxes,as well as boxes without cover,7-Layer need to be customised
Twin head semi auto stitching machine Main accessories and brands:
Description	Brand
Stitching head	Taiwan XX
Servo Control System	Japan Yaskawa
PLC		Japan Mitsubishi
Touch Screen	Taiwan Weilun

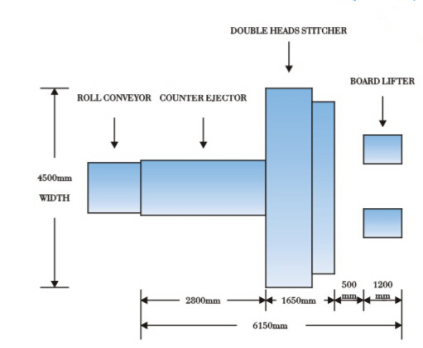

Twin head semi auto stitching machine Machine composition:
Main Frame	1 pcs
Conveyor Frame	1 pcs
Drum Frame	1 pcs
Hydraulic Lift Table	2 pcs
Track	1 pcs
Twin head semi auto stitching machine Distribution:
Tool Box	1 pcs
Air Gun	1 pcs
Air Gun Connector	1 pcs
Oil Pot	1 pcs
Manual book	1 PCS
