YXD-050 1500mm

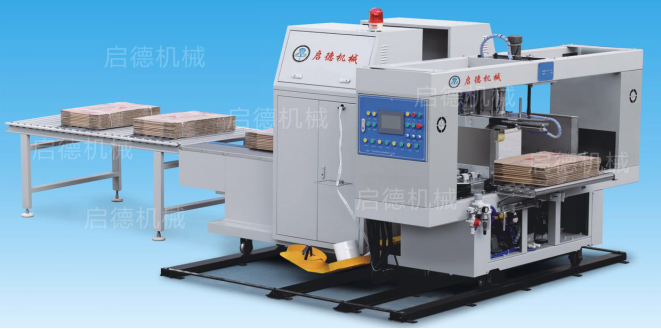

PE Packaging Machine,PE Strapping Machine,double-end PE packaging Machine(Baler) full auto pe strapping
1 Adopted double servo,double press, double push, double open structure, applied for corrugated cardboard and boxes
2 Strapped single and double tie packaging
3 Feeding unit and front rack adopted mounting bracket, back rack adopted double open single press, which will be increased packaging speed and steady,
4 Low cost:The cost of PE belt was 3-5 times lower than the PP belt
5 Good stability:Imported servo control system helps to reduce the mechanical drive and Mechanical wear,expand the lifespan
6 Humanization design:automatic counting and production yield
7 Multifunction HMI, easy to operate, imported programmable fault monitoring system
8 Left and right head can be adjusted independently,easily and versatile operating
9 Finishing tie is more feasible, when knotting it will be far away from machine for preventing box damaged.
10　Used Schneider electric brand(Servo,switches,proximity switch,limit switch,contactors); all packaging sizes are set by computer; SMC pneumatic flutter made products look neat artistic
11　Conveyor belt are imported from Italy

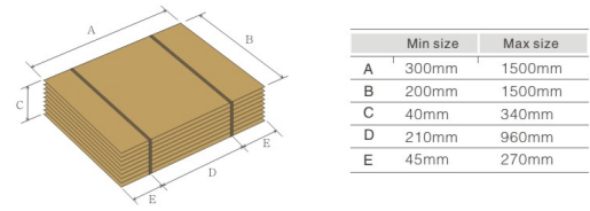

NO	Items	Specs
1	packaging length size	Max：1500mm
		Min：200mm
2	packaging width size	Max：1500mm
		Min：300mm
3	packaging height size	Max：340mm
		Min：40mm
4	Packaging speed	30±2 packs/minute
5	strapping tie type	PE tie 28#、32#
6	Machine length	3200mm
7	Machine width	2800mm
8	Machine Height	1800mm
9	Machine weight	2T
10	Machine power	2.0KW
11	Work pressure	0.5MPa
二、Features
No	Functions
1	Adopted double servo,double press, double push, double open structure, applied for corrugated cardboard and boxes
2	Strapped single and double tie packaging
3	Feeding unit and front rack adopted mounting bracket, back rack adopted double open single press, which will be increased packaging speed and steady,
4	Low cost:The cost of PE belt was 3-5 times lower than the PP belt
5	Good stability:Imported servo control system helps to reduce the mechanical drive and Mechanical wear,expand the lifespan
6	Humanization design:automatic counting and production yield
7	Multifunction HMI, easy to operate, imported programmable fault monitoring system
8	Left and right head can be adjusted independently,easily and versatile operating
9		Finishing tie is more feasible, when knotting it will be far away from machine for preventing box damaged.
10		Used Schneider electric brand(Servo,switches,proximity switch,limit switch,contactors); all packaging sizes are set by computer; SMC pneumatic flutter made products look neat artistic
11		Conveyor belt are imported from Italy
三、Accessories：
No	Name	Quantity
1	Box conveyor rack	1pcs
2	Knife	1box
3	measure tape	1pcs
4	muanal book	1copy
