YXD-060 1700mm
PE Packaging Machine,PE Strapping Machine,double-end PE packaging Machine(Baler) full auto pe strapping
1 Adopted double servo,double press, double push, double open structure, applied for corrugated cardboard and boxes
2 Strapped single and double tie packaging
3 Feeding unit and front rack adopted mounting bracket, back rack adopted double open single press, which will be increased packaging speed and steady,
4 Low cost:The cost of PE belt was 3-5 times lower than the PP belt
5 Good stability:Imported servo control system helps to reduce the mechanical drive and Mechanical wear,expand the lifespan
6 Humanization design:automatic counting and production yield
7 Multifunction HMI, easy to operate, imported programmable fault monitoring system
8 Left and right head can be adjusted independently,easily and versatile operating
9 Finishing tie is more feasible, when knotting it will be far away from machine for preventing box damaged.
10 Used Schneider electric brand(Servo,switches,proximity switch,limit switch,contactors); all packaging sizes are set by computer; SMC pneumatic flutter made products look neat artistic
11 Conveyor belt are imported from Italy

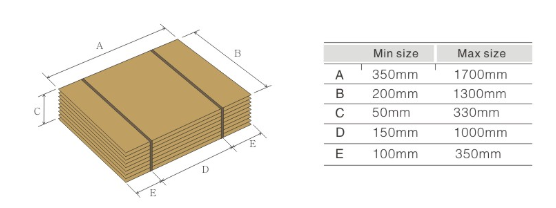

| NO | Items | Specs |
| 1 | packaging length size | Max：1300mm |
| Min：200mm | ||
| 2 | packaging width size | Max：1700mm |
| Min：400mm | ||
| 3 | packaging height size | Max：300mm |
| Min：50mm | ||
| 4 | Packaging speed | 28±2 packs/minute |
| 5 | strapping tie type | PE tie 28#、32# |
| 6 | Machine length | 2700mm |
| 7 | Machine width | 3000mm |
| 8 | Machine Height | 2100mm |
| 9 | Machine weight | 2.5T |
| 10 | Machine power | 3.0KW |
| 11 | Work pressure | 0.6MPa |
| 二、Features | ||
| No | Functions | |
| 1 | Adopted double servo,double press, double push, double open structure, applied for corrugated cardboard and boxes | |
| 2 | Strapped single and double tie packaging | |
| 3 | Feeding unit and front rack adopted mounting bracket, back rack adopted double open single press, which will be increased packaging speed and steady, | |
| 4 | Low cost:The cost of PE belt was 3-5 times lower than the PP belt | |
| 5 | Good stability:Imported servo control system helps to reduce the mechanical drive and Mechanical wear,expand the lifespan | |
| 6 | Humanization design:automatic counting and production yield | |
| 7 | Multifunction HMI, easy to operate, imported programmable fault monitoring system | |
| 8 | Left and right head can be adjusted independently,easily and versatile operating | |
| 9 | Finishing tie is more feasible, when knotting it will be far away from machine for preventing box damaged. | |
| 10 | Used Schneider electric brand(Servo,switches,proximity switch,limit switch,contactors); all packaging sizes are set by computer; SMC pneumatic flutter made products look neat artistic | |
| 11 | Conveyor belt are imported from Italy | |
| 三、Accessories： | ||
| No | Name | Quantity |
| 1 | Box conveyor rack | 1pcs |
| 2 | Knife | 1box |
| 3 | measure tape | 1pcs |
| 4 | muanal book | 1copy |
