2700mm
two piece joint stitcher, two piece box stitching machine,twin head joint stitcher ,two head box stitching machine,double head stitching machine,Double Head Box Stitching Machine
1. Adopt Import Double Servo Control System
2. Applied single, double and irregular corrugated carton stitching
3. Available for single, double and strengthen nail
4. Suitable for 3,5,and 7-Layer carton boxes
5. Operating sizes are adjusted by computer, running errors showed on the screen
6. Automatic counter ejector and bundle sheaves of cartons to make working efficiently
7. Stitching Pitch from 30-120mm adjusted by computer

Specification	YXD-040
	2700mm

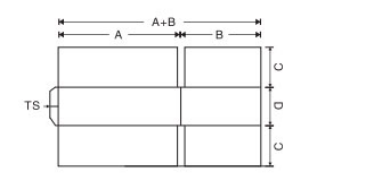

Max.Sheet size(A+B)×2	5400mm	212.6inch
Min.Sheet size(A+B)×2	1060mm	41.7inch
Max.Box Length (A)	2550mm	100.4inch
Min. Box Length (A)	350mm	13.7inch
Max. Box Width (B)	1350mm	53.2inch
Min. Box Width (B)	150mm	5.9inch
Min. Sheet Height (C+D+C)	400mm	15.7inch
Max. Sheet Height (C+D+C)	3000mm	118inch
Max. flap(C-Stopper Measurement)	600mm
Max. TS Width	25-45mm(25-60mm need be customized)
Min. of the First stitch Pitch	25mm without cover
Cardboard thickness	3-8mm,(3-12mm need be customized)
Stitching Pitch	30-120mm
No. of stitching	1-99 Stitches or more
Machine Speed	500 Stitches/Minute
Input Voltage	380V three phase
Stitching wire(width*Thickness)	(0.68-0.75)*(1.8-2.0)mm
Stitching wire tray	2.5KG(20kg need be customized)
Power Required	18HP

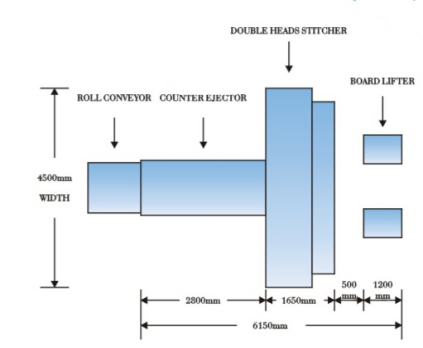

Machine Length	6000mm
Machine Width	4500mm
Machine Weight		5900KG
Stitching Type		Single, Double, Tie Stitching: "/ / / / /" 、"// // //" 、"// / / / //"
Twins head joint stitcher Features:
Adopt Import Double Servo Control System
Suitable for single, double pieces operation and irregular corrugated carton stitching.
Electronically controlled for the size, explanation of the fault showed on the screen
Single, double and tie stitching are available, all the nails can be rounded off in one time
Automatic counter ejector, when up to the qty set up on the touch screen, will automatically bundle sheaves of cartons
Stitching Pitch can be adjustable to set on the touch screen,and it's adjustable from 30mm-120mm
Suit for 3-Layer,5-Layer large boxes,as well as boxes without cover,7-Layer need to be customised
Twins head joint stitcher Main accessories and brands:
Description		Brand
Stitching head		Taiwan XX
Description	BrandJapan Yaskawa
Stitching head	Taiwan XX
Servo Control System	Japan Yaskawa
PLC		Japan Mitsubishi
Touch Screen	Taiwan Weilun
Twins head joint stitcher Machine composition:
Main Frame	1 pcs
Conveyor Frame	1 pcs
Drum Frame	1 pcs
Hydraulic Lift Table	2 pcs
Track	1 pcs
Twin head semi auto stitching machine Distribution:
Tool Box	1 pcs
Air Gun	1 pcs
Air Gun Connector	1 pcs
Oil Pot	1 pcs
Manual book	1 PCS
